A B C D E F G H I L M
68 36 5 48/58 35 25.5 22 14.3 13 26 14
N O Q S T Fh(daN) gr
10 2 4.3 34.5 M4 160 100
---------------------------------------------------------------------------------
Double rod series (light performance)
The sizes of this series are also produced in stainless steel and are shown below in red.
Material:Galvanized steel or AISI 304 stainless steel
Riveted pivots and rod:Galvanized steel or AISI 304 stainless steel
Swinging pivot:Galvanized steel or AISI 303 stainless steel
Handles: Red polyurethane resistant to oils, grease and other chemical agents.
Performance:The tool comes with a double rod, bracket and nuts.
Features and applications:The tools of this series ensure a perfect closing of lids. The support base is perpendicular to the force line of action. In the closed position, the control lever is parallel to the support base.
A special grease is placed between two contacting surfaces during assembly.

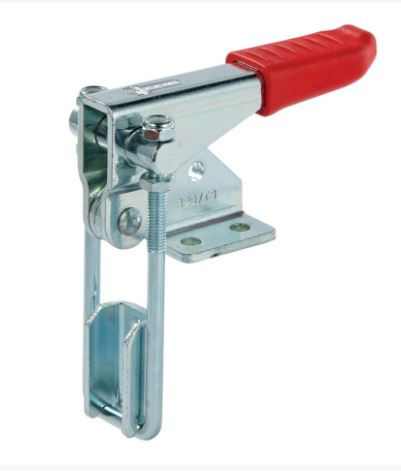

Toggle clamp Form T3
