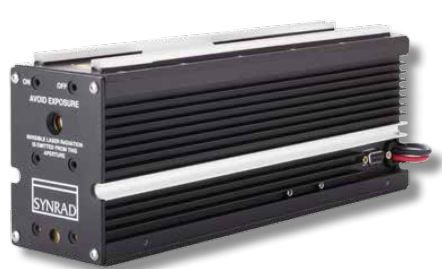

The 32 Series features the only RF-integrated 5 Watt CO2 laser available, the 32-1. A 5 Watt CO2 laser is a unique piece of equipment, and the new 32-1 is the perfect solution for PCB marking applications where end-users demand smaller machines for compact factory settings. The 32-1 is also the industry's smallest CO2laser, setting a new benchmark for low power, industrial grade CO2 lasers. Many sensitive marking applications currently use higher power lasers and bleed off the excess laser power to avoid burn-through and excessive melting. Engineered specifically for marking and coding on sensitive materials, the 32-1 uses less energy than higher power lasers, reducing operating costs.

SPECIFICATION

Performance
32-1
Output Power
5 W
Mode Quality
< 1.2
Rise/Fall Time
< 150/150 µsec
Beam Diameter
2.3 + 0.5 mm
Wavelength
10.6 + 0.03 µm
Power Stability from cold start (guaranteed)
+ 15% (~10% typ)
Cooling
Air
Heat Load (max)
150 W
Input Voltage/Current
30 VDC + 2.0/4 A
Dimensions Inches (mm)
11.2 x 2.8 x 4.2 (284 x 71 x 106)
Weight
7 lbs. (3.18 kg)
