Low silhouette hold down clamp features a handle that can be operated from either side or from behind
- Up to 150 lb. (670 N) capacity
- Supplied with neoprene spindle
- Stainless steel models available
| Maxmum Holding Capacity (N) | 670 |
| Maximum Holding Capacity (lbsf) | 150 |
| Clamp Arm Length (mm) | 30.2 |
| Clamp Arm Length (in) | 1.190 |
| Height Under Clamp Arm (mm) | 12.2 |
| Height Under Clamp Arm (in) | 0.480 |
| Clamp Bar Opening (+10°) (degrees) | 90 |
| Handle Opening (+10°) | 170 |
| Available | Yes |
| Standard Material | Steel |
| Toggle Lock Plus | No |
| Accomodates Workpiece Variation | No |
| Base Mounting Style | Flange |
| Clamp Arm Style | U-Bar |
| Handle | Horizonal |
| Service Environment | Normal |
| Application - Welding | Poor/Low |
| Application - Assembly | Excellent/High |
| Application - Checking Fixtures | Fair/Medium |
| Application - Machining | Poor/Low |
| Application - Wood-Working | Excellent/High |
| Application - Closures | Excellent/High |
| Application - Food Processing | Fair/Medium |
| Duty Cycle | 2 |
| Product Type | Compact |
| Weight (kg) | 0.06 |
| Weight (lb) | 0.13 |

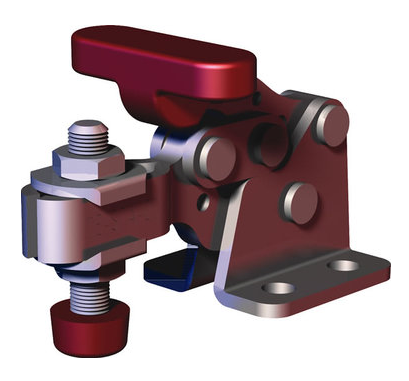

305-U HORIZONTAL HOLD-DOWN TOGGLE LOCKING CLAMP
SKU: 305-U
₱869.00Price
