Minimum overhead clearance is required for this low profile clamp
- Clamp supplied with neoprene spindle
- Low profile
| Maxmum Holding Capacity (N) | 3,340 |
| Maximum Holding Capacity (lbsf) | 750 |
| Clamp Arm Length (mm) | 105.9 |
| Clamp Arm Length (in) | 4.170 |
| Height Under Clamp Arm (mm) | 42.9 |
| Height Under Clamp Arm (in) | 1.690 |
| Clamp Bar Opening (+10°) (degrees) | 92 |
| Handle Opening (+10°) | 70 |
| Available | Yes |
| Standard Material | Steel |
| Toggle Lock Plus | No |
| Accomodates Workpiece Variation | No |
| Base Mounting Style | Flange |
| Clamp Arm Style | U-Bar |
| Handle | Horizonal |
| Service Environment | Normal |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Application - Checking Fixtures | Excellent/High |
| Application - Machining | Poor/Low |
| Application - Wood-Working | Excellent/High |
| Application - Closures | Excellent/High |
| Application - Food Processing | Fair/Medium |
| Duty Cycle | 2 |
| Product Type | Standard |
| Weight (kg) | 0.67 |
| Weight (lb) | 1.48 |

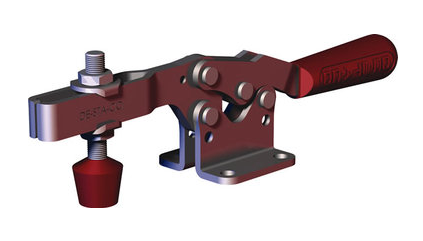

235-U HORIZONTAL HOLD-DOWN TOGGLE LOCKING CLAMP
SKU: 235-U
₱2,141.00Price
